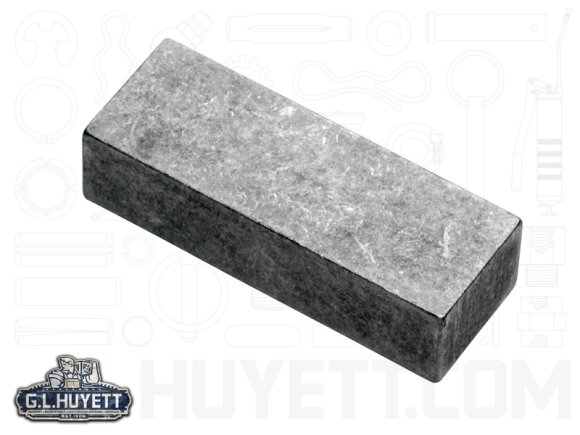

Machine Key 3/16 x 1/4 x 3/4 Form B Carbon Steel Undersize

3001870250-0750

Price:

each

Qty	Unit price
Each
7	$0.2879
20	$0.2728
100	$0.2576
300	$0.2425
1000	$0.2273

Material Certification Available

Weight (lbs.): 0.009967

Country of Origin: USA

RoHS Compliant: Yes

HTS Number: 8483905090

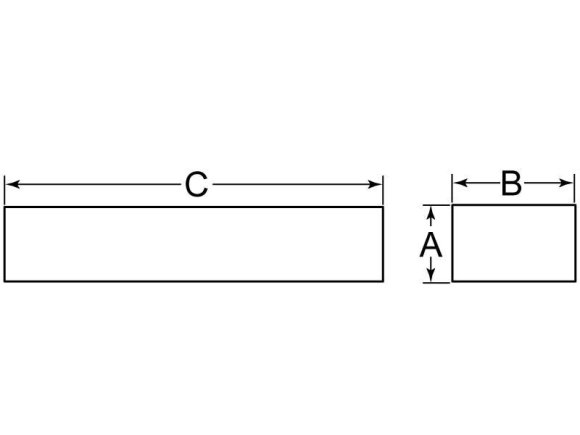

Overall Length: .7500 in

Width: .2500 in

Inch or Metric: Inch

Height: .1875 in

Shape: Rectangle

Finish: Plain

Material: Carbon Steel

Type: Undersized Machine Key

Size: 3/16 in x 1/4 in

Form: B

Width Maximum: .2500 in

Width Minimum: .2470 in

Height Maximum: .1875 in

Height Minimum: .1845 in

Overall Length Maximum: .7500 in

Overall Length Minimum: .7200 in

Overall Length Fraction: 3/4 in

Width Fraction: 1/4 in

Height Fraction: 3/16 in

Specification: ANSI B17.1

Hardness: HRB 50 Min

Overall Length Maximum Fraction: 3/4 in

Width Maximum Fraction: 1/4 in

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.
