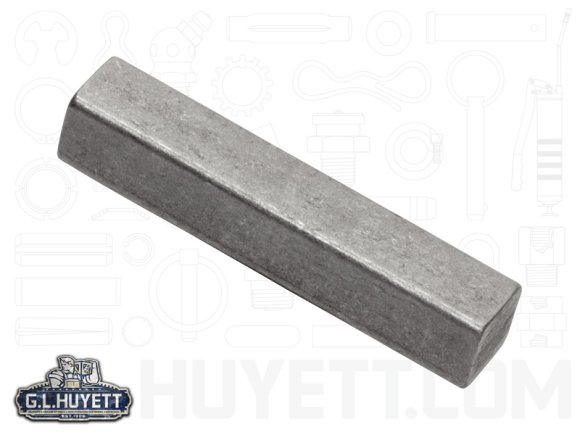

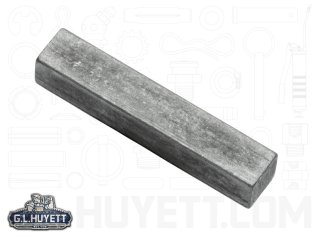

Machine Key 3/8" x 3/8" x 1-3/4" Form B Carbon Steel Plain Undersized ANSI B17.1

3003750375-1750

Machine Key 3/8 x 3/8 x 1-3/4 Form B Carbon Steel Undersize

Price: $0.9077

Minimum Order Qty: 3

Quantity

In Stock

Qty	Unit price
Each
3	$0.9077
5	$0.8623
20	$0.8169
100	$0.7715
300	$0.7262
1000	$0.6808

Material Certification Available

Weight (lbs.): 0.069768

Country of Origin: USA

RoHS Compliant: Yes

HTS Number: 8483905090

Overall Length: 1.7500 in

Width: .3750 in

Inch or Metric: Inch

Height: .3750 in

Shape: Square

Finish: Plain

Material: Carbon Steel

Type: Undersized Machine Key

Size: 3/8 in x 3/8 in

Form: B

Width Maximum: .3750 in

Width Minimum: .3730 in

Height Maximum: .3750 in

Height Minimum: .3730 in

Overall Length Maximum: 1.7500 in

Overall Length Minimum: 1.7200 in

Overall Length Fraction: 1-3/4 in

Width Fraction: 3/8 in

Height Fraction: 3/8 in

Specification: ANSI B17.1

Hardness: HRB 50 Min

Application Shaft Diameter: 1-7/16 in

Overall Length Maximum Fraction: 1-3/4 in

Width Maximum Fraction: 3/8 in

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.

Cart Total	$0.00
Items Total	0
Web Discount	$0.00

Machine Key 3/8" x 3/8" x 1-3/4" Form B Carbon Steel Plain Undersized ANSI B17.1

Related Products

Machine Key 3/8 x 3/8 x 1-3/4 Form A Carbon Steel Undersize

Machine Key 3/8 x 3/8 x 1-3/4 Form AB CS PL UN

Machine Key 3/8 x 3/8 x 1-3/4 Form B Carbon Steel Oversized

Machine Key 3/8 x 3/8 x 1-3/4 Form B 1045 PL UN

Machine Key 3/8 x 3/8 x 1-3/4 Form B 4140 PL UN

Machine Key 3/8x3/8x1-3/4 Form AB SS300 PL UN

Machine Key 3/8 x 3/8 x 1-3/4 Form B MC/AS Moltrup

Machine Key 3/8 x 3/8 x 1-3/4 Form B SS416 PL UN

Machine Key 3/8 x 3/8 x 1-3/4 Form B SS 300 Undersize

Machine Key 3/8 x 3/8 x 1-3/4 Form A SS300 PL UN

Machine Key 3/8 x 3/8 x 1-3/4 Form B SS300 PL OV

Machine Key 3/8 x 3/8 x 1-3/4 Form B SS316 PL UN

Machine Key 3/8 x 3/8 x 1-3/4 Form A 1045 Steel Oversized

Machine Key 3/8 x 3/8 x 1-3/4 Form B Cbn Steel ZC Trv Undrsz

Machine Key 3/8 x 3/8 x 1-3/4 Form A Carbon Steel Oversized

Catalogs & Resources

Need help finding what you’re looking for?

Machine Key 3/8" x 3/8" x 1-3/4" Form B Carbon Steel Plain Undersized ANSI B17.1

DescriptionDescription

AttributesAttributes

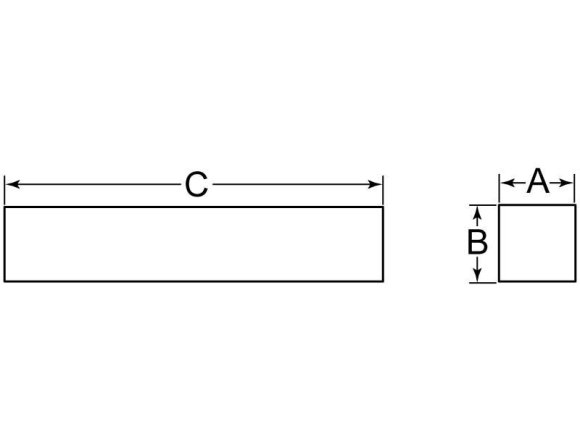

Technical DrawingTechnical Drawing
