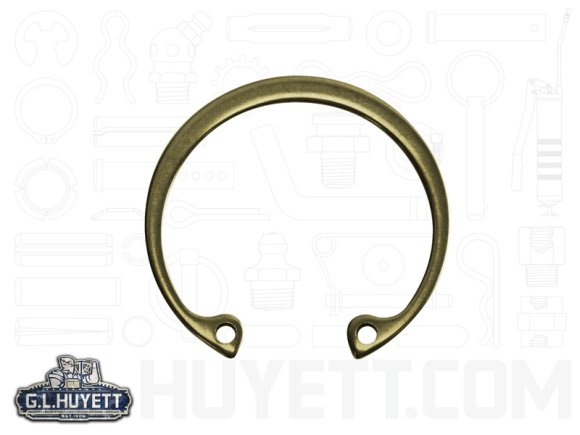

Housing Retaining Ring Internal 5/16 Spring Steel ZY

HO-031-ZD

Price:

each

Qty	Unit price
Each
16	$0.1253
50	$0.1190
250	$0.1128
500	$0.1065
5000	$0.1002
10000	$0.0940

Weight (lbs.): 0.00011

Country of Origin: USA

HTS Number: 7318240000

Brand Rotor Clip

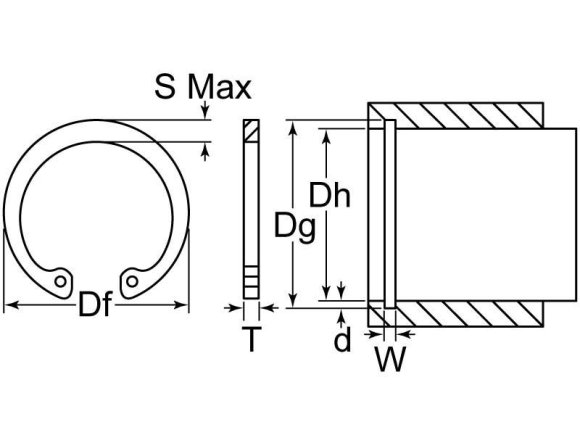

Hole Diameter: .031 in

Inch or Metric: Inch

Groove Diameter: .330 in

Housing Diameter: .313 in

Finish: Zinc Yellow

Material: Carbon Spring Steel

Type: Internal

Thickness: .015 in

Style: Stamped

Allowable Corner Chamfers: .013 in

Allowable Corner Radii: .016 in

Clearance Diameter Released in Groove: .191 in

Edge Margin: .027 in

Free Diameter: .350 in

Gap Width Minimum: .055 in

Groove Depth: .010 in

Groove Diameter to Shaft Concentricity: .0015 in

Groove Width: .020 in

Lug Height: .066 in

Maximum Section: .033 in

Minimum Section: .018 in

Maximum Thrust Load: 190 Pound-Force

Clearance Diameter Compressed in Housing: .173 in

Manufacturer Part Number: HO-31ST ZD

Hardness: HR15N 86-88

Free Diameter Tolerance: +.010/-.005

Groove Diameter Tolerance: ±.001

Groove Width Tolerance: +.002/-.000

Thickness Tolerance: ±.002

Maximum Section Tolerance: ±.002

Housing Diameter Fraction: 5/16 in

Hole Diameter Tolerance: +.010/-.002

Lug Height Tolerance: ±.003

Minimum Section Tolerance: ±.002

Military Specification: No

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.
