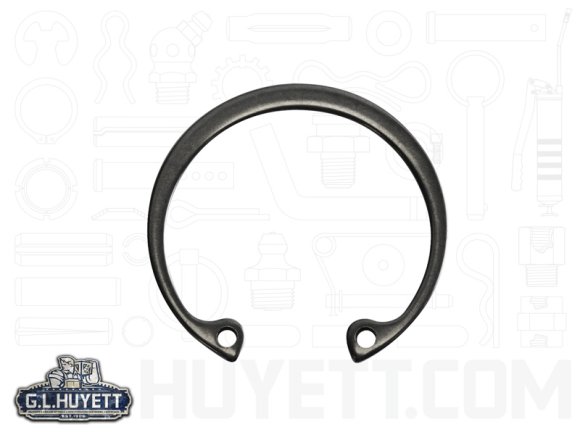

Housing Retaining Ring Internal 7/16 Stainless Steel

HO-043-SS

Price:

each

Qty	Unit price
Each
3	$0.9525
50	$0.9049
250	$0.8573
500	$0.8096
5000	$0.7620
10000	$0.7144

Material Certification Available

Weight (lbs.): 0.00037

Country of Origin: USA

RoHS Compliant: Yes

HTS Number: 7318240000

Brand Rotor Clip

Hole Diameter: .041 in

Inch or Metric: Inch

Material Grade: PH 15-7/17-7

Groove Diameter: .461 in

Housing Diameter: .438 in

Finish: Plain

Material: Stainless Steel

Type: Internal

Thickness: .025 in

Style: Stamped

Allowable Corner Chamfers: .021 in

Allowable Corner Radii: .027 in

Clearance Diameter Released in Groove: .254 in

Edge Margin: .036 in

Free Diameter: .480 in

Gap Width Minimum: .063 in

Groove Depth: .010 in

Groove Diameter to Shaft Concentricity: .002 in

Groove Width: .030 in

Lug Height: .098 in

Maximum Section: .049 in

Minimum Section: .029 in

Maximum Thrust Load: 530 Pound-Force

Clearance Diameter Compressed in Housing: .230 in

Manufacturer Part Number: HO-43SS

Hardness: HR30N 63-69.5

Free Diameter Tolerance: +.010/-.005

Groove Diameter Tolerance: ±.002

Groove Width Tolerance: +.003/-.000

Thickness Tolerance: ±.002

Maximum Section Tolerance: ±.003

Housing Diameter Fraction: 7/16 in

Hole Diameter Tolerance: +.010/-.002

Lug Height Tolerance: ±.003

Minimum Section Tolerance: ±.003

Military Specification: No

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.

Cart Total	$0.00
Items Total	0
Web Discount	$0.00

Housing Retaining Ring Internal 7/16 Stainless Steel

Related Products

Housing Retaining Ring Internal 7/16 Spring Steel PH

Housing Retaining Ring Internal 7/16 Spring Steel ZY

Pliers Int Sm Standard Str Tip

Housing Retaining Ring Internal 7/16 Spring Steel PH STK

Pliers Int Sm Standard 45 Tip

Housing Retaining Ring Internal 7/16 Spring Steel ZY STK

Pliers Int Sm Standard 90 Tip

Catalogs & Resources

Need help finding what you’re looking for?

Housing Retaining Ring Internal 7/16 Stainless Steel

DescriptionDescription

AttributesAttributes

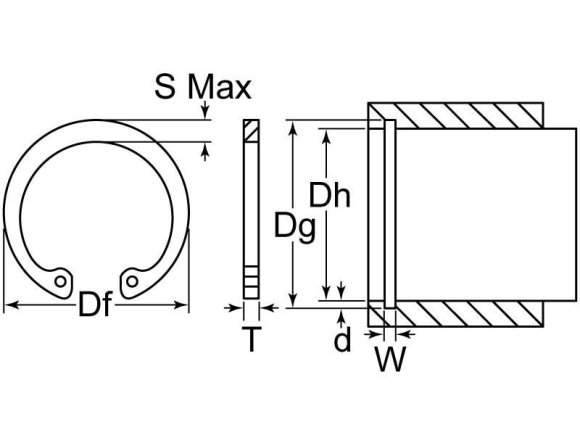

Technical DrawingTechnical Drawing
