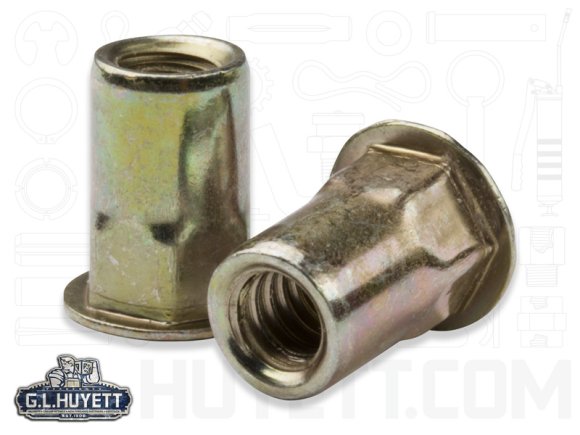

Rivet Nut Half Hex CAH #8-32 x 130 Y3 50 Pack

BTI-CAH2-0832-130-50/B1

Price:

each

Qty	Unit price
Each
50	$8.4968
1000	$8.0720
2500	$7.6471
5000	$7.2223
10000	$6.7974
15000	$6.3726

No Material Cert Avail for In Stock Items

Description

Attributes

Weight (lbs.): 0.1488

HTS Number: 7318190000

Brand Sherex

Hole Diameter: .249 in

Inch or Metric: Inch

Material Grade: 1008/1010

Thread Pitch: 32 Threads per Inch

Material: Low Carbon Steel

Finish: Zinc Yellow

Type: AH Series - Open End Rivet Nut

Form: Large Flange

Thread Size: #8-32

Thread Type: UNC

Grip Range: .080 in to .130 in

Thread Diameter Fraction: #8

Head Diameter: .375 in

Head Height: .027 in

Finish Chromate Layer: Trivalent

Installed Height: .295 in

Uninstalled Height: .435 in

End Type: Open End

Body Type: Half Hex Body

Head Diameter Fraction: 3/8 in

Hole Diameter Tolerance: +.004/-.000

Wall Thickness: Thin Wall

Finish Specification: Sherex SFS-01-001, SC2

Head Diameter Tolerance: ± .010 ± .025

Head Height Tolerance: ±.003

Thread Reference: 2B

Uninstalled Height Tolerance: ±.015

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.

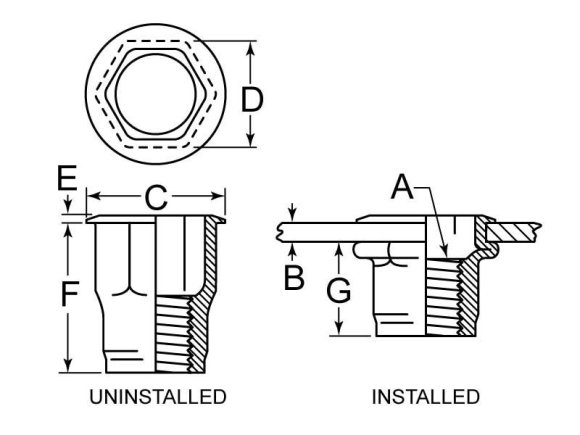

Technical Drawing

Questions & Reviews

Catalogs & Resources

Catalog Page

Cart Total	$0.00
Items Total	0
Web Discount	$0.00

Rivet Nut Half Hex CAH #8-32 x 130 Y3 50 Pack

Description

Attributes

Technical Drawing

Questions & Reviews

Catalogs & Resources

Related Products

Rivet Nut Half Hex CAH #8-32 x 130 Low Carbon Steel Y3

Flex-5 Pull to Pressure Pneumatic Tool

Flex-5 Pull to Stroke Pneumatic Tool

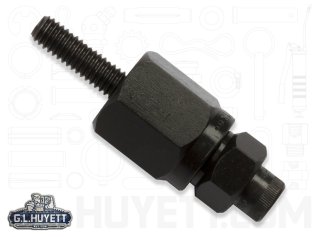

Head Set Complete #8-32 for Spin Tool
