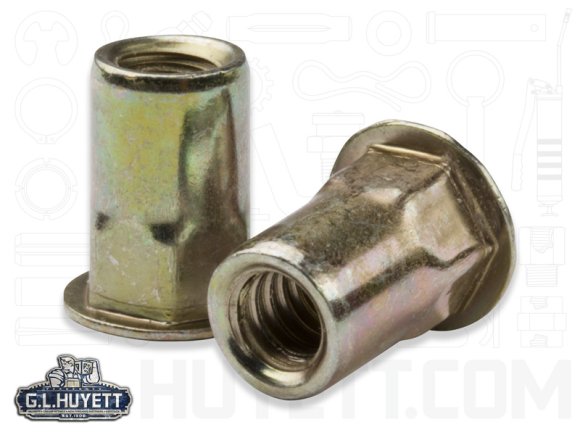

Rivet Nut Half Hex CAH M8-1.25 x 7.9 Low Carbon Steel Y3

BTI-CAH2-8125-7.9/B1

Price:

each

Qty	Unit price
Each
5	$0.4953
1000	$0.4705
2500	$0.4458
5000	$0.4210
10000	$0.3962
15000	$0.3715

No Material Cert Avail for In Stock Items

Description

Attributes

Weight (lbs.): 0.019665

RoHS Compliant: Yes

HTS Number: 7318190000

Brand Sherex

Hole Diameter: 12.70 mm

Inch or Metric: Metric

Material Grade: 1008/1010

Thread Pitch: 1.25 mm Thread Pitch

Material: Low Carbon Steel

Finish: Zinc Yellow

Type: AH Series - Open End Rivet Nut

Form: Large Flange

Thread Size: M8 x 1.25

Thread Type: ISO

Grip Range: 3.80 mm to 7.90 mm

Thread Diameter Fraction: 8 mm

Head Diameter: 16.64 mm

Head Height: 0.89 mm

Finish Chromate Layer: Trivalent

Installed Height: 13.08 mm

Uninstalled Height: 21.46 mm

End Type: Open End

Body Type: Half Hex Body

Hole Diameter Tolerance: +.10/-.00

Wall Thickness: Thin Wall

Finish Specification: Sherex SFS-01-001, SC2

Head Diameter Tolerance: ± .25 ± .64

Head Height Tolerance: ±.003

Thread Reference: 2B

Uninstalled Height Tolerance: ±.38

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.
