Rivet Nut Smooth CPB 1/4-20 x 500 Y3 25 Pack

BTI-CPB2-2520-500-25/B1

Price:

each

Qty	Unit price
Each
30	$21.5050
1000	$20.4298
2500	$19.3545
5000	$18.2793
10000	$17.2040
15000	$16.1288

No Material Cert Avail for In Stock Items

Description

Attributes

Weight (lbs.): 0.416

HTS Number: 7318190000

Brand Sherex

Hole Diameter: .382 in

Inch or Metric: Inch

Material Grade: 1008/1010

Thread Pitch: 20 Threads per Inch

Material: Low Carbon Steel

Finish: Zinc Yellow

Type: AR Series-Open End Rivet Nut

Form: Flat Head

Thread Size: 1/4-20

Thread Type: UNC

Grip Range: .280 in to .500 in

Thread Diameter Fraction: 1/4 in

Head Diameter: .645 in

Head Height: .059 in

Finish Chromate Layer: Trivalent

Installed Height: .505 in

Uninstalled Height: 1.234 in

End Type: Open End

Body Type: Pre-Bulbed Body

Hole Diameter Tolerance: +.006/-.000

Wall Thickness: Thin Wall

Finish Specification: Sherex SFS-01-001, SC2

Head Height Tolerance: ±.005

Thread Reference: 2B

Uninstalled Height Tolerance: ±.015

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.

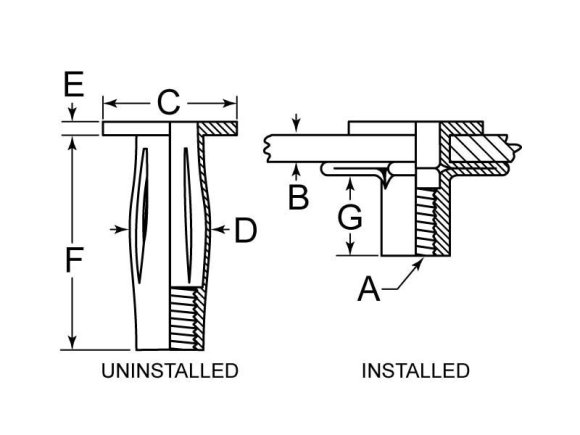

Technical Drawing

Questions & Reviews

Catalogs & Resources

Catalog Page
