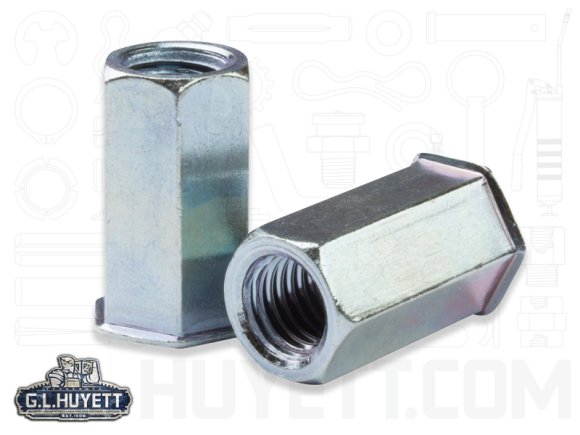

Rivet Nut Hex FHK M8-1.25 x 7.0 Low Carbon Steel Z3

BTI-FHK2-8125-7.0/B1

Price:

each

Qty	Unit price
Each
9	$0.2419
1000	$0.2298
2500	$0.2177
5000	$0.2056
10000	$0.1935
15000	$0.1814

No Material Cert Avail for In Stock Items

Description

Attributes

Weight (lbs.): 0.0177

RoHS Compliant: Yes

HTS Number: 7318190000

Brand Sherex

Hole Diameter: 10.98 mm

Inch or Metric: Metric

Material Grade: 1008/1010

Thread Pitch: 1.25 mm Thread Pitch

Material: Low Carbon Steel

Finish: Zinc Clear

Type: FHK Series - Open End Rivet Nut

Form: Small Flange

Thread Size: M8 x 1.25

Thread Type: ISO

Grip Range: 4.00 mm to 7.00 mm

Thread Diameter Fraction: 8 mm

Head Diameter: 11.60 mm

Head Height: 0.41 mm

Finish Chromate Layer: Trivalent

Installed Height: 13.60 mm

Uninstalled Height: 23.20 mm

End Type: Open End

Body Type: Full Hex Body

Hole Diameter Tolerance: +.10/-.00

Wall Thickness: Thick Wall

Finish Specification: Sherex SFS-01-001

Head Diameter Tolerance: ±.25 ±.38 ±.64

Head Height Tolerance: ±0.12 ±0.18

Thread Reference: 2B

Uninstalled Height Tolerance: ±.38

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.

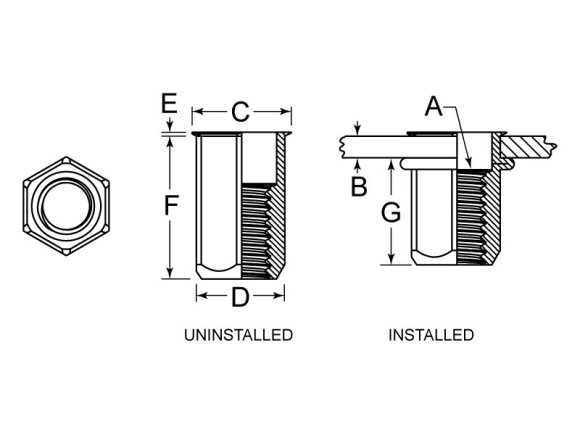

Technical Drawing
