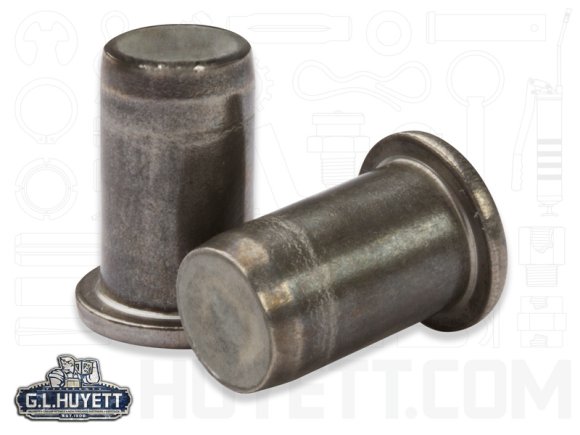

Rivet Nut Smooth UPX M8-1.25 x 3.0 Stainless Steel PV

BTI-TU-316M8UPX30/B1

Price:

each

Qty	Unit price
Each
500	$4.6970
1000	$4.4622
2500	$4.2273
5000	$3.9925
10000	$3.7576
15000	$3.5228

No Material Cert Avail for In Stock Items

Description

Attributes

Weight (lbs.): 0.021826

RoHS Compliant: Yes

HTS Number: 7318190000

Brand Tubtara

Hole Diameter: 11.00 mm

Inch or Metric: Metric

Material Grade: 316

Thread Pitch: 1.25 mm Thread Pitch

Material: 300 Series Stainless Steel

Finish: Passivated

Type: TU Series - Closed End Rivet Nut

Form: Large Flange

Thread Size: M8 x 1.25

Thread Type: ISO

Grip Range: 0.50 mm to 3.00 mm

Thread Diameter Fraction: 8 mm

Head Diameter: 16.00 mm

Uninstalled Height: 20.50 mm

End Type: Closed End

Body Type: Round Body

Hole Diameter Tolerance: +.1/-.00

Wall Thickness: Thin Wall

Finish Specification: Passivate

Head Diameter Tolerance: ±.35

Thread Reference: 2B

Uninstalled Height Tolerance: ±.35

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.

Cart Total	$0.00
Items Total	0
Web Discount	$0.00

Rivet Nut Smooth UPX M8-1.25 x 3.0 Stainless Steel PV

Description

Attributes

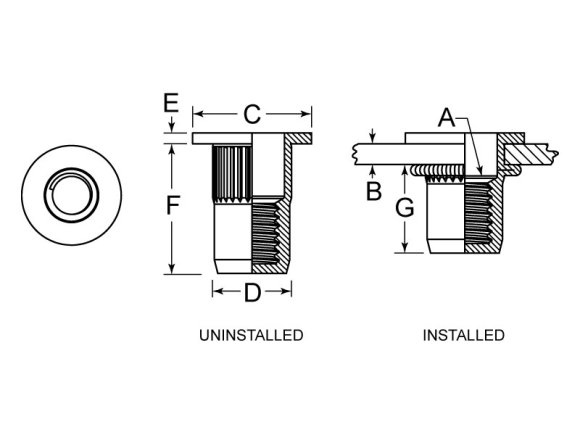

Technical Drawing
