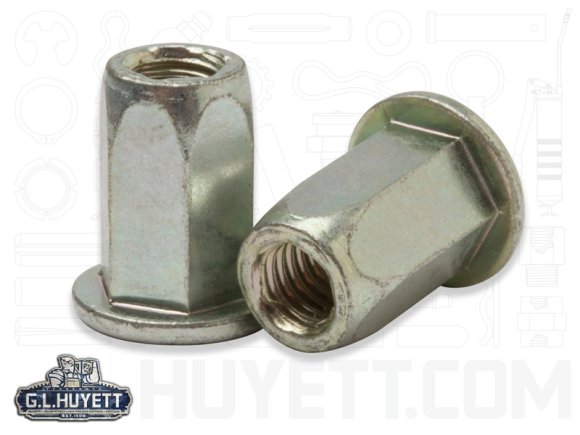

Rivet Nut Hex HUKO M5-0.8 x 5.5 Low Carbon Steel ZT

BTI-TU-SM5HUKO55ZT/B1

Price:

each

Qty	Unit price
Each
2000	$0.5020
2500	$0.4756
5000	$0.4491
10000	$0.4227
15000	$0.3963

No Material Cert Avail for In Stock Items

Description

Attributes

Weight (lbs.): 0.005071

RoHS Compliant: Yes

HTS Number: 7318190000

Brand Tubtara

Hole Diameter: 7.00 mm

Inch or Metric: Metric

Material Grade: 34-3

Thread Pitch: 0.80 mm Thread Pitch

Material: Low Carbon Steel

Finish: Zinktop

Type: TU Series - Open End Rivet Nut

Form: Small Flange

Thread Size: M5 x 0.80

Thread Type: ISO

Grip Range: 3.00 mm to 5.50 mm

Thread Diameter Fraction: 5 mm

Head Diameter: 7.70 mm

Head Height: 0.60 mm

Uninstalled Height: 16.50 mm

End Type: Open End

Body Type: Full Hex Body

Hole Diameter Tolerance: +.1/-.00

Wall Thickness: Thin Wall

Finish Specification: Zinktop (Clear) 96 w / 480 r

Head Diameter Tolerance: +0.3/-0.15

Thread Reference: 2B

Uninstalled Height Tolerance: ±.35

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.

Cart Total	$0.00
Items Total	0
Web Discount	$0.00

Rivet Nut Hex HUKO M5-0.8 x 5.5 Low Carbon Steel ZT

Description

Attributes

Technical Drawing

Questions & Reviews

Catalogs & Resources

Related Products

Rivet Nut Hand Tool Ratchet Metric

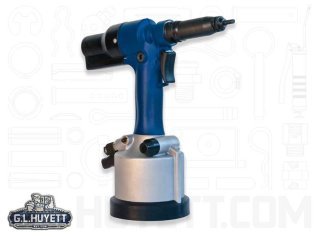

Flex-5 Pull to Pressure Pneumatic Tool
