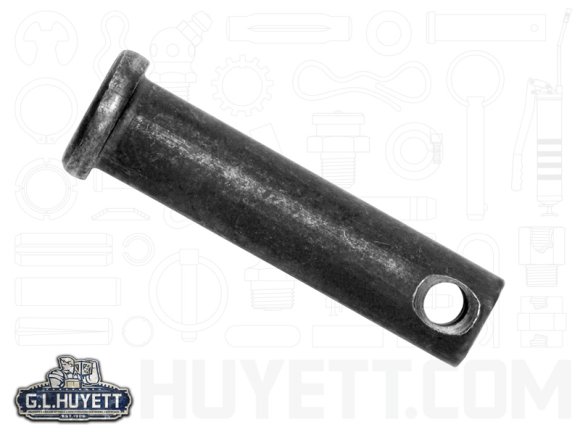

Clevis Pin 1/4 x 5 Low Carbon Steel

CLP-0250-5000

Price:

each

Qty	Unit price
Each
2	$1.1253
100	$1.0690
250	$1.0128
500	$0.9565
1000	$0.9002
5000	$0.8440

Weight (lbs.): 0.07

RoHS Compliant: Yes

HTS Number: 7318290000

Brand None

Shank Length: 5.000 in

Effective Length: 4.859 in

Outside Diameter: .250 in

Hole Diameter: .094 in

Inch or Metric: Inch

Finish: Plain

Material: Low Carbon Steel

Type: Clevis Pin Standard

Head Diameter: .370 in

Head Height: .100 in

Head Diameter Maximum: .380 in

Head Diameter Minimum: .365 in

Head Height Maximum: .100 in

Head Height Minimum: .084 in

Hole Diameter Maximum: .103 in

Hole Diameter Minimum: .088 in

Outside Diameter Maximum: .248 in

Outside Diameter Minimum: .243 in

Shank Length Maximum: 5.020 in

Shank Length Minimum: 5.000 in

Effective Length Fraction: 4-55/64 in

Hole Diameter Fraction: 3/32 in

Outside Diameter Fraction: 1/4 in

Shank Length Fraction: 5 in

Mating Part: BP-213

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.

Cart Total	$0.00
Items Total	0
Web Discount	$0.00

Clevis Pin 1/4 x 5 Low Carbon Steel

Related Products

Clevis Pin Cotterless 1/4 x 5 Low Carbon Steel Zinc Clear

Tether 3/64 x 6 304SS Nylon Type 2

Tether 3/64 x 12 304SS Nylon Type 1

ITW Tether Lanyard 3/64 x 8 Stainless Nylon Coated 2 Loop

Tether Lanyard 3/64 x 6 Steel Nylon Coated 2 Loop with Tab

Clevis Pin 1/4 x 5 Low Carbon Steel Zinc Clear

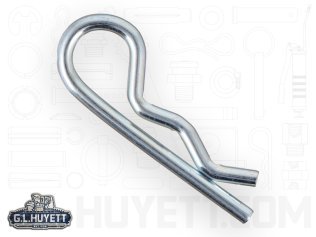

Bridge Hitch Hair Pin Clip .08 x 1-3/16 MB Spring Wire ZC

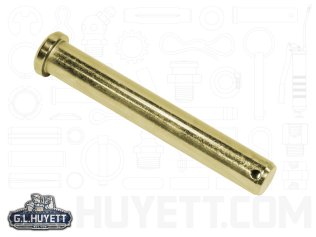

Clevis Pin 1/4 x 5 Low Carbon Steel Zinc Yellow

Catalogs & Resources

Need help finding what you’re looking for?

Clevis Pin 1/4 x 5 Low Carbon Steel

DescriptionDescription

AttributesAttributes

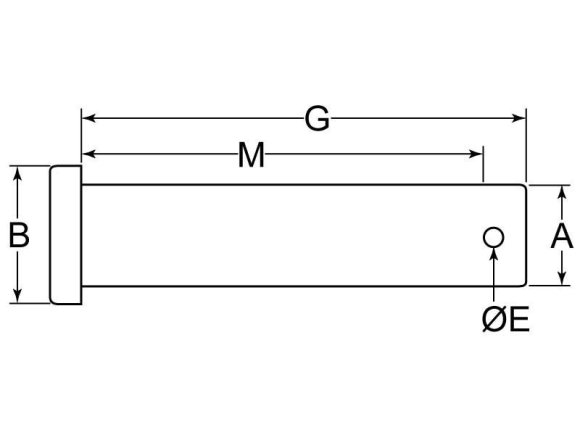

Technical DrawingTechnical Drawing
