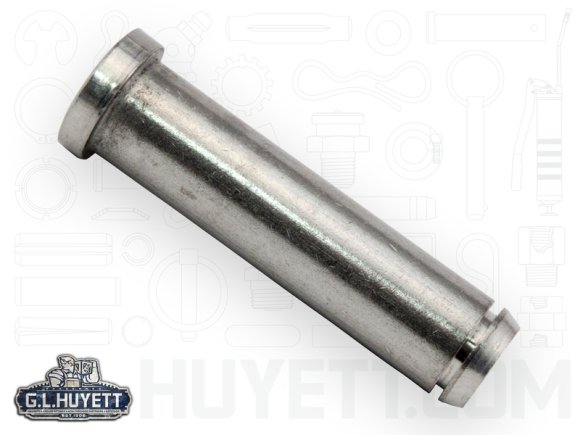

Clevis Pin Grooved 8 mm x 25 mm Stainless Steel Plain
CLPGMS-080-025




Description
Clevis Pin Grooved 8 mm x 25 mm Stainless Steel Plain
• A plain finished part is one that has not been treated or had a finish applied to it for additional protection
• Economical solution when parts are frequently changed out or don't have exposure to corrosion
• 300 series is a class of austenitic stainless steel alloy with high nickel content
• 300 series is more workable than 200 series and its high nickel content provides for greater corrosion resistance
• Grooved clevis pins are unthreaded fasteners often used to quickly connect/disconnect equipment and are locked in place by the head on one end and a groove with a clip near the other end
Attributes
All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.

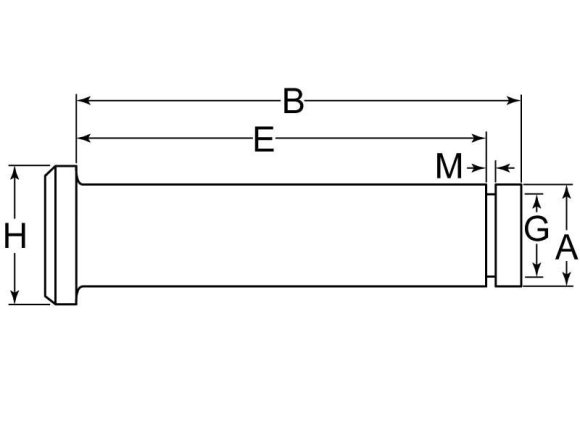

Technical Drawing

Attribute Name | Dimension | Value |
---|---|---|
Outside Diameter | A | 8.00 mm |
Shank Length | B | 25.00 mm |
Effective Length | E | 22.56 mm |
Groove Diameter Minimum | G | 6.91 mm |
Head Diameter | H | 14.00 mm |
Groove Width | M | 0.94 mm |
