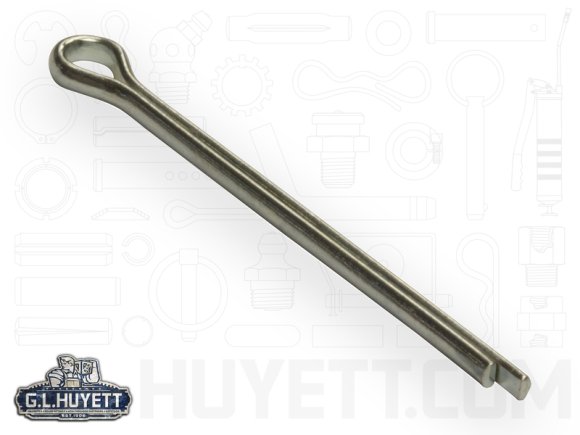

Cotter Pin 7/64 x 1-1/4 Carbon Steel Zinc Clear

CP-109-1250

Price:

each

Qty	Unit price
Each
46	$0.0444
750	$0.0422
2500	$0.0400
5000	$0.0377
7500	$0.0355
11000	$0.0333

Weight (lbs.): 0.003918

Country of Origin: Import

RoHS Compliant: Yes

HTS Number: 7318240000

Brand Huyett

Width: .104 in

Effective Length: 1.250 in

Outside Diameter: .109 in

Inch or Metric: Inch

Finish: Zinc Clear

Material: Carbon Steel

Type: Cotter Pin

Width Maximum: .104 in

Width Minimum: .080 in

Effective Length Maximum: 1.310 in

Effective Length Minimum: 1.190 in

Outside Diameter Maximum: .107 in

Outside Diameter Minimum: .100 in

Head Diameter Minimum: .220 in

Prong Length Minimum: .050 in

Effective Length Fraction: 1-1/4 in

Outside Diameter Fraction: 7/64 in

Specification: ASME B18.8.1

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.
