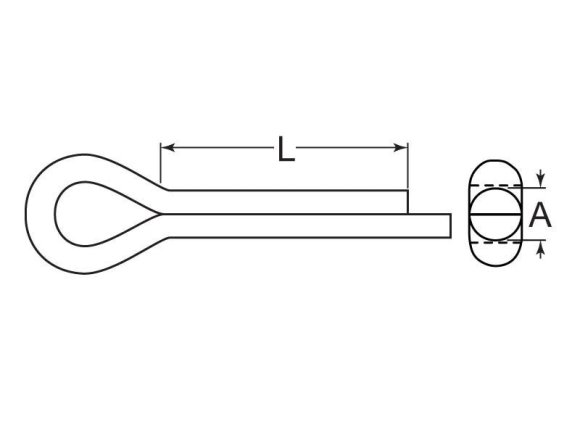

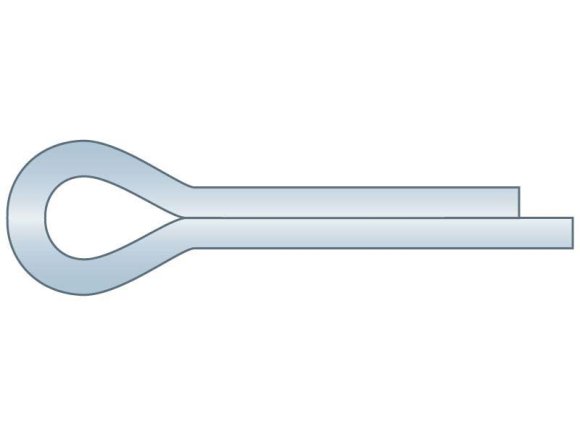

Cotter Pin 1/4 x 5 Carbon Steel Zinc Clear

CP-250-5000

Cotter Pin 1/4 x 5 Carbon Steel Zinc Clear

Price:

each

Qty	Unit price
Each
4	$0.6360
750	$0.6042
2500	$0.5724
5000	$0.5406
7500	$0.5088
11000	$0.4770

Weight (lbs.): 0.06

Country of Origin: Import

RoHS Compliant: Yes

HTS Number: 7318240000

Brand Huyett

Width: .225 in

Effective Length: 5.000 in

Outside Diameter: .250 in

Inch or Metric: Inch

Finish: Zinc Clear

Material: Carbon Steel

Type: Cotter Pin

Width Maximum: .225 in

Width Minimum: .176 in

Effective Length Maximum: 5.060 in

Effective Length Minimum: 4.940 in

Outside Diameter Maximum: .230 in

Outside Diameter Minimum: .220 in

Head Diameter Minimum: .500 in

Prong Length Minimum: .110 in

Effective Length Fraction: 5 in

Outside Diameter Fraction: 1/4 in

Specification: ASME B18.8.1

Head Diameter Minimum Fraction: 1/2 in

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.
