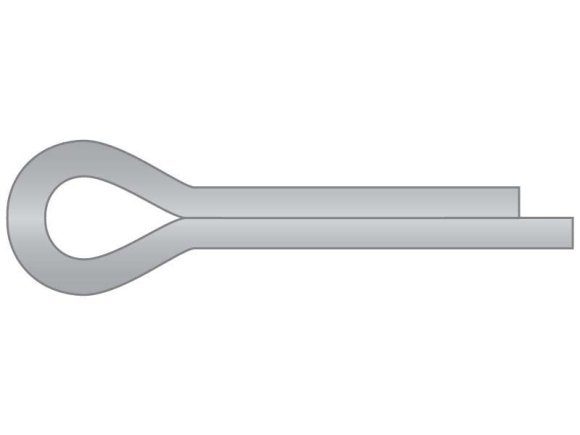

Cotter Pin 7/32 x 2-1/2 300 Series Stainless Steel

CPS-218-2500

Price:

each

Qty	Unit price
Each
4	$0.6541
100	$0.6214
250	$0.5887
500	$0.5560
1000	$0.5233
5000	$0.4906

Weight (lbs.): 0.0324

Country of Origin: Import

RoHS Compliant: Yes

HTS Number: 7318240000

Brand Huyett

Width: .207 in

Effective Length: 2.500 in

Outside Diameter: .219 in

Inch or Metric: Inch

Finish: Plain

Material: 300 Series Stainless Steel

Type: Cotter Pin

Width Maximum: .207 in

Width Minimum: .161 in

Effective Length Maximum: 2.560 in

Effective Length Minimum: 2.440 in

Outside Diameter Maximum: .212 in

Outside Diameter Minimum: .202 in

Head Diameter Minimum: .440 in

Prong Length Minimum: .100 in

Effective Length Fraction: 2-1/2 in

Outside Diameter Fraction: 7/32 in

Specification: ASME B18.8.1

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.
