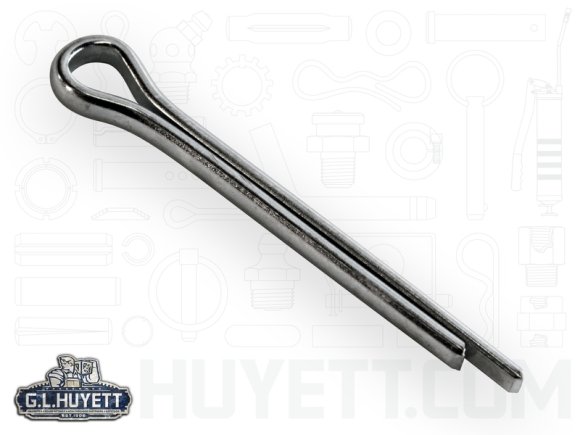

Cotter Pin 5/32" x 1-1/4" 316 Stainless Steel Plain ASME B18.8.1

CPS16-156-1250

Price: $0.2529

Minimum Order Qty: 8

Quantity

In Stock

Qty	Unit price
Each
8	$0.2529
100	$0.2403
250	$0.2276
500	$0.2150
1000	$0.2023
5000	$0.1897

Weight (lbs.): 0.008

Country of Origin: Import

RoHS Compliant: Yes

HTS Number: 7318240000

Brand Huyett

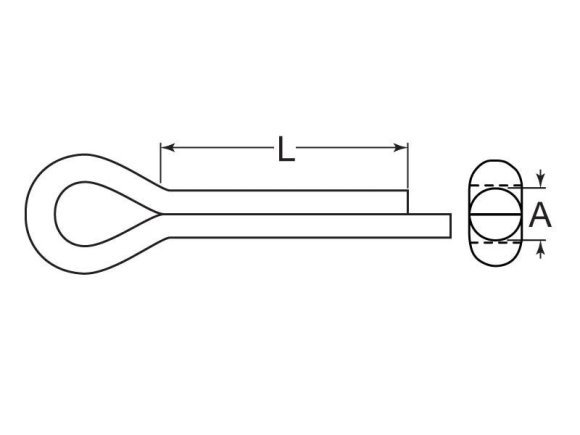

Width: .150 in

Effective Length: 1.250 in

Outside Diameter: .156 in

Inch or Metric: Inch

Material Grade: 316

Finish: Plain

Material: 300 Series Stainless Steel

Type: Cotter Pin

Width Maximum: .150 in

Width Minimum: .116 in

Effective Length Maximum: 1.310 in

Effective Length Minimum: 1.190 in

Outside Diameter Maximum: .154 in

Outside Diameter Minimum: .146 in

Head Diameter Minimum: .310 in

Prong Length Minimum: .070 in

Effective Length Fraction: 1-1/4 in

Outside Diameter Fraction: 5/32 in

Specification: ASME B18.8.1

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.
