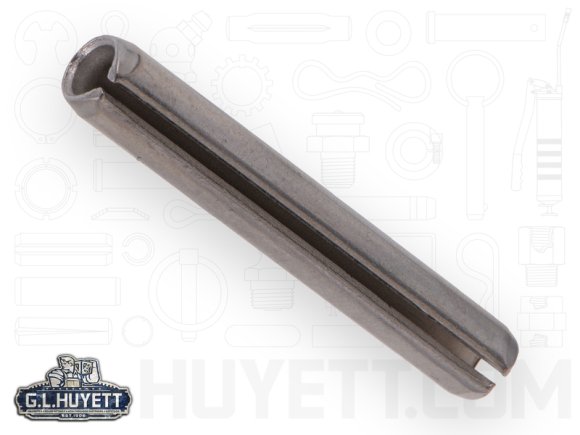

Slotted Spring Pin SD 1/8 x 9/16 Stainless Steel MS16562

MS16562-222

Price:

each

No Material Cert Avail for In Stock Items

Weight (lbs.): 0.00125

Country of Origin: USA

RoHS Compliant: Yes

HTS Number: 7318290000

Brand None

Overall Length: .563 in

Outside Diameter: .125 in

Inch or Metric: Inch

Material Grade: 410/420

Finish: Passivated

Material: Stainless Steel

Type: Slotted Spring Pin

Overall Length Maximum: .577 in

Overall Length Minimum: .547 in

Outside Diameter Maximum: .135 in

Outside Diameter Minimum: .131 in

Duty: Standard Duty

Wall Thickness: .028 in

Shear Strength Minimum: 2100 Pound-Force

Outside Diameter Fraction: 1/8 in

Overall Length Fraction: 9/16 in

Specification: MS16562

Hardness: HRC 43-52

Military Specification: Yes

Military Specification ID: MS16562

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.

Cart Total	$0.00
Items Total	0
Web Discount	$0.00

Slotted Spring Pin SD 1/8 x 9/16 Stainless Steel MS16562

Related Products

Slotted Spring Pin 1/8 x 9/16 302/304 SS

Slotted Spring Pin 1/8 x 9/16 Carbon Steel ZC

Slotted Spring Pin 1/8 x 9/16 Carbon Steel

Slotted Spring Pin 1/8 x 9/16 302/304 SS PV

Slotted Spring Pin 1/8 x 9/16 420 SS PV

Slotted Spring Pin 1/8 x 9/16 Carbon Steel Zinc Yellow

Slotted Spring Pin SD 1/8 x 9/16 Carbon Steel Cd MS16562

Slotted Spring Pin SD 1/8 x 9/16 Carbon Steel Phos MS16562

Slotted Spring Pin SD 1/8 x 9/16 Stainless Steel MS171527

Slotted Spring Pin 1/8 x 9/16 Carbon Steel Phosphate

Catalogs & Resources

Need help finding what you’re looking for?

Slotted Spring Pin SD 1/8 x 9/16 Stainless Steel MS16562

DescriptionDescription

AttributesAttributes

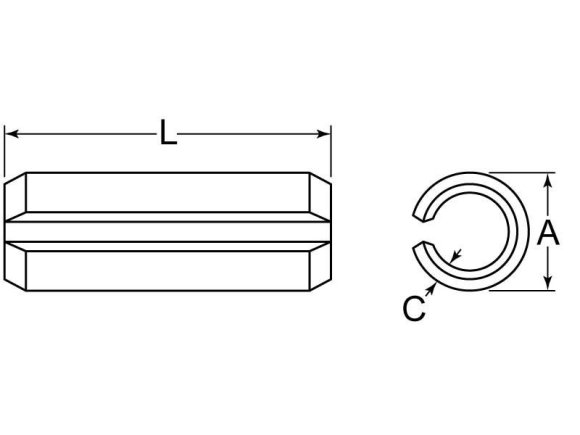

Technical DrawingTechnical Drawing
