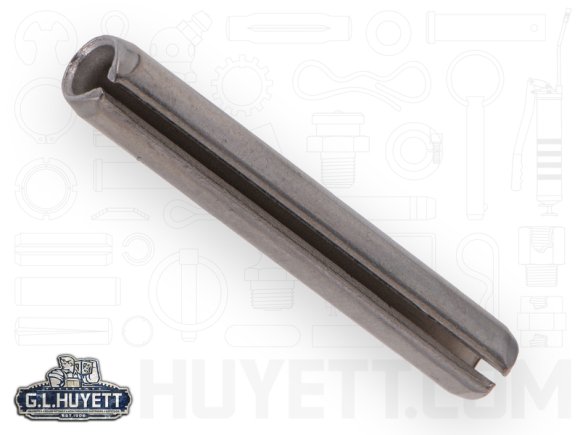

Slotted Spring Pin SD 3/16 x 1-1/2 Stainless Steel MS16562

MS16562-240

Price:

each

Qty	Unit price
Each
1750	$0.6419
3000	$0.6042
6000	$0.5664

No Material Cert Avail for In Stock Items

Weight (lbs.): 0.00735

Country of Origin: Import

RoHS Compliant: Yes

HTS Number: 7318290000

Brand None

Overall Length: 1.500 in

Outside Diameter: .188 in

Inch or Metric: Inch

Material Grade: 410/420

Finish: Passivated

Material: Stainless Steel

Type: Slotted Spring Pin

Overall Length Maximum: 1.520 in

Overall Length Minimum: 1.480 in

Outside Diameter Maximum: .199 in

Outside Diameter Minimum: .194 in

Duty: Standard Duty

Wall Thickness: .040 in

Shear Strength Minimum: 4400 Pound-Force

Outside Diameter Fraction: 3/16 in

Overall Length Fraction: 1-1/2 in

Specification: MS16562

Hardness: HRC 43-52

Military Specification: Yes

Military Specification ID: MS16562

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.

Cart Total	$0.00
Items Total	0
Web Discount	$0.00

Slotted Spring Pin SD 3/16 x 1-1/2 Stainless Steel MS16562

Related Products

Slotted Spring Pin 3/16 x 1-1/2 302/304 SS

Slotted Spring Pin 3/16 x 1-1/2 Carbon Steel Zinc Clear

Slotted Spring Pin 3/16 x 1-1/2 Carbon Steel

Slotted Spring Pin 3/16 x 1-1/2 302/304 SS PV

Slotted Spring Pin 3/16 x 1-1/2 420 SS PV

Slotted Spring Pin SD 3/16 x 1-1/2 Carbon Steel Cd MS16562

Slotted Spring Pin SD 3/16 x 1-1/2 Carbon Steel Phos MS16562

Slotted Spring Pin SD 3/16 x 1-1/2 Stainless Steel MS171598

Slotted Spring Pin 3/16 x 1-1/2 Carbon Steel Phos

Slotted Spring Pin 3/16 x 1-1/2 Carbon Steel Zinc Yel

Catalogs & Resources

Need help finding what you’re looking for?

Slotted Spring Pin SD 3/16 x 1-1/2 Stainless Steel MS16562

DescriptionDescription

AttributesAttributes

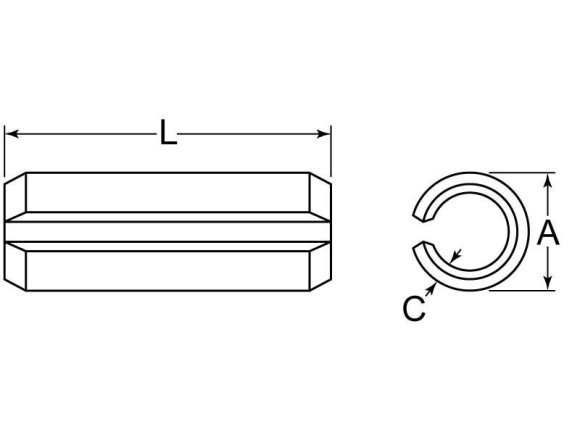

Technical DrawingTechnical Drawing
