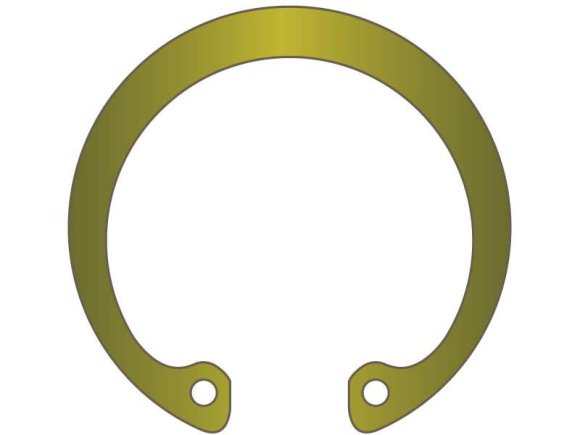

Housing Retaining Ring Internal 3-9/16 Steel CDY MS16625

MS16625-1354

Price:

each

Qty	Unit price
Each
10	$255.4982
50	$242.7233
250	$229.9484
500	$217.1735
5000	$204.3986
10000	$191.6237

No Material Cert Avail for In Stock Items

Weight (lbs.): 0.072

Country of Origin: USA

HTS Number: 7318240000

Brand Rotor Clip

Hole Diameter: .125 in

Inch or Metric: Inch

Groove Diameter: 3.760 in

Housing Diameter: 3.563 in

Finish: Cadmium

Material: Carbon Spring Steel

Type: Internal

Thickness: .109 in

Style: Stamped

Allowable Corner Chamfers: .088 in

Allowable Corner Radii: .110 in

Clearance Diameter Released in Groove: 3.040 in

Edge Margin: .318 in

Free Diameter: 3.940 in

Gap Width Minimum: .788 in

Groove Depth: .110 in

Groove Diameter to Shaft Concentricity: .006 in

Groove Width: .120 in

Lug Height: .342 in

Maximum Section: .292 in

Minimum Section: .142 in

Maximum Thrust Load: 12000 Pound-Force

Clearance Diameter Compressed in Housing: 2.830 in

Manufacturer Part Number: HO-354ST MCD

Hardness: HRC 44-51

Free Diameter Tolerance: ±.055

Groove Diameter Tolerance: ±.006

Groove Width Tolerance: +.005/-.000

Thickness Tolerance: ±.003

Maximum Section Tolerance: ±.008

Housing Diameter Fraction: 3-9/16 in

Hole Diameter Tolerance: +.015/-.002

Lug Height Tolerance: ±.008

Minimum Section Tolerance: ±.008

Military Specification: Yes

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.

Cart Total	$0.00
Items Total	0
Web Discount	$0.00

Housing Retaining Ring Internal 3-9/16 Steel CDY MS16625

Related Products

Pliers Int XS-M Ratchet No Tip

Pliers Tip Sm-M Ratchet Str

Pliers Tip Sm-M Ratchet 45

Pliers Tip Sm-M Ratchet 90

Catalogs & Resources

Need help finding what you’re looking for?

Housing Retaining Ring Internal 3-9/16 Steel CDY MS16625

DescriptionDescription

AttributesAttributes

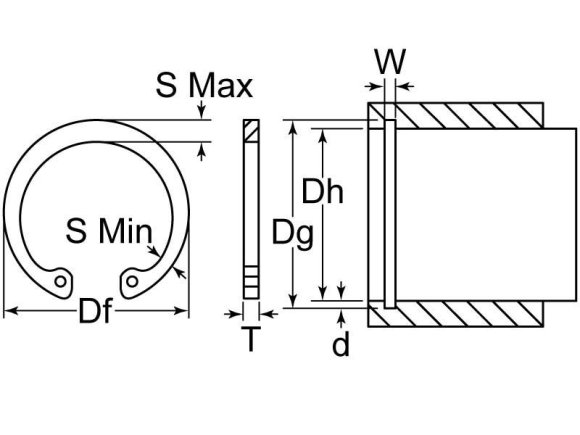

Technical DrawingTechnical Drawing
