Housing Retaining Ring Bvl Internal 3-3/4 SS PV MS16631

MS16631-4375

Price:

each

Qty	Unit price
Each
25	$65.9557
50	$62.6579
250	$59.3601
500	$56.0623
5000	$52.7646
10000	$49.4668

No Material Cert Avail for In Stock Items

Weight (lbs.): 0.082

Country of Origin: USA

RoHS Compliant: Yes

HTS Number: 7318240000

Brand Rotor Clip

Hole Diameter: .125 in

Inch or Metric: Inch

Material Grade: PH 15-7

Groove Diameter: 4.030 in

Housing Diameter: 3.750 in

Finish: Passivated

Material: Stainless Steel

Type: Beveled Internal

Thickness: .109 in

Style: Stamped

Allowable Corner Chamfers: .096 in

Allowable Corner Radii: .120 in

Clearance Diameter Released in Groove: 3.170 in

Edge Margin: .217 in

Free Diameter: 4.157 in

Gap Width: .674 in

Groove Depth: .145 in

Groove Diameter to Shaft Concentricity: .006 in

Groove Width: .089 in

Lug Height: .342 in

Maximum Section: .309 in

Minimum Section: .155 in

Thickness Beveled End: .082 in

Maximum Thrust Load: 12000 Pound-Force

Clearance Diameter Compressed in Housing: 3.030 in

Manufacturer Part Number: VHO-375SS MPS

Hardness: HRC 44-51

Free Diameter Tolerance: ±.065

Groove Diameter Tolerance: +.006/-.000

Groove Width Tolerance: +.008/-.000

Thickness Tolerance: ±.003

Maximum Section Tolerance: ±.008

Housing Diameter Fraction: 3-3/4 in

Hole Diameter Tolerance: +.015/-.002

Lug Height Tolerance: ±.008

Minimum Section Tolerance: ±.008

Thickness Beveled End Tolerance: ±.0025

Military Specification: Yes

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.

Cart Total	$0.00
Items Total	0
Web Discount	$0.00

Housing Retaining Ring Bvl Internal 3-3/4 SS PV MS16631

Related Products

Pliers Int XS-M Ratchet No Tip

Pliers Tip Sm-M Ratchet Str

Pliers Tip Sm-M Ratchet 45

Pliers Tip Sm-M Ratchet 90

Catalogs & Resources

Need help finding what you’re looking for?

Housing Retaining Ring Bvl Internal 3-3/4 SS PV MS16631

DescriptionDescription

AttributesAttributes

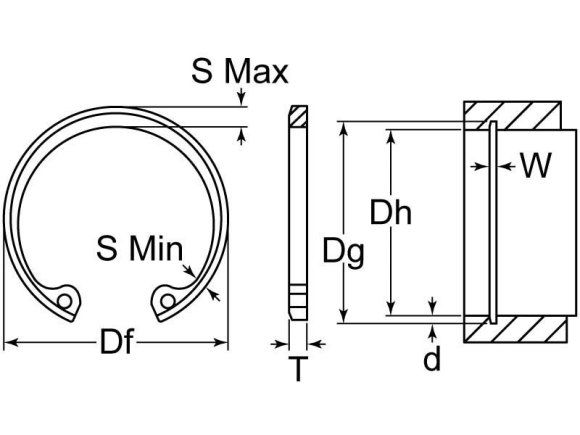

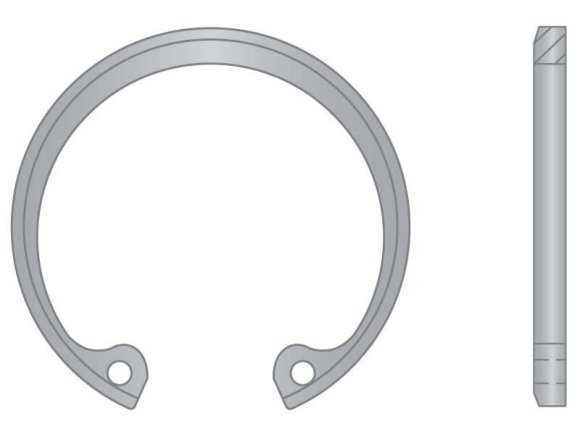

Technical DrawingTechnical Drawing
