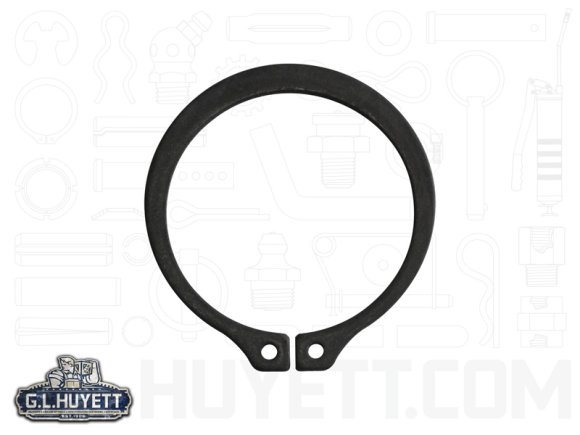

Snap Retaining Ring External 1-3/8 Spring Steel Phos

SH-137

Price:

each

Qty	Unit price
Each
6	$0.3442
100	$0.3270
500	$0.3098
1000	$0.2926
4000	$0.2754
10000	$0.2582

Description

Attributes

Weight (lbs.): 0.0072

Country of Origin: USA

RoHS Compliant: Yes

HTS Number: 7318240000

Brand Rotor Clip

Hole Diameter: .078 in

Inch or Metric: Inch

Groove Diameter: 1.291 in

Shaft Diameter: 1.375 in

Finish: Phosphate

Material: Carbon Spring Steel

Type: Snap Rings External

Thickness: .050 in

Style: Stamped

Groove Width: .056 in

Duty: Standard Duty

Allowable Corner Chamfers: .043 in

Allowable Corner Radii: .072 in

Clearance Diameter Expanded Over Shaft: 1.800 in

Clearance Diameter Released in Groove: 1.720 in

Edge Margin: .126 in

Free Diameter: 1.270 in

Gaging Diameter Maximum: 1.529 in

Groove Depth: .040 in

Groove Diameter to Shaft Concentricity: .005 in

Lug Height: .184 in

Maximum Section: .152 in

Minimum Section: .082 in

Maximum Thrust Load: 1950 Pound-Force

Manufacturer Part Number: SH-137ST PA

Hardness: HRC 47-52

Free Diameter Tolerance: +.010/-.015

Groove Diameter Tolerance: ±.004

Groove Width Tolerance: +.004/-.000

RPM Limits: 16000 rpm

Shaft Diameter Fraction: 1-3/8 in

Thickness Tolerance: ±.002

Maximum Section Tolerance: ±.006

Hole Diameter Tolerance: +.015/-.002

Lug Height Tolerance: ±.004

Minimum Section Tolerance: ±.006

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.

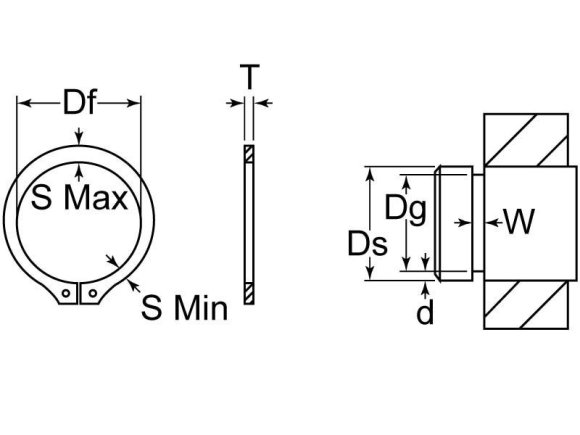

Technical Drawing
