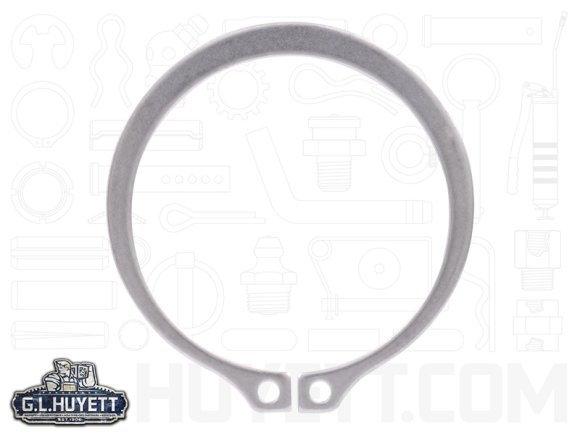

Snap Retaining Ring External 2 Stainless Steel

SH-200-SS

Price:

each

Qty	Unit price
Each
1	$9.1057
100	$8.6504
500	$8.1951
1000	$7.7398
4000	$7.2846
10000	$6.8293

Request No Charge Material Cert

Description

Attributes

Weight (lbs.): 0.019

Country of Origin: USA

RoHS Compliant: Yes

HTS Number: 7318240000

Brand Rotor Clip

Hole Diameter: .125 in

Inch or Metric: Inch

Material Grade: PH 15-7/17-7

Groove Diameter: 1.890 in

Shaft Diameter: 2.000 in

Finish: Plain

Material: Stainless Steel

Type: Snap Rings External

Thickness: .062 in

Style: Stamped

Groove Width: .070 in

Duty: Standard Duty

Allowable Corner Chamfers: .057 in

Allowable Corner Radii: .096 in

Clearance Diameter Expanded Over Shaft: 2.596 in

Clearance Diameter Released in Groove: 2.486 in

Edge Margin: .171 in

Free Diameter: 1.850 in

Gaging Diameter Maximum: 2.205 in

Groove Depth: .060 in

Groove Diameter to Shaft Concentricity: .005 in

Lug Height: .262 in

Maximum Section: .204 in

Minimum Section: .108 in

Maximum Thrust Load: 3000 Pound-Force

Manufacturer Part Number: SH-200SS

Hardness: HRC 44-51

Free Diameter Tolerance: +.013/-.020

Groove Diameter Tolerance: ±.005

Groove Width Tolerance: +.004/-.000

Shaft Diameter Fraction: 2 in

Thickness Tolerance: ±.003

Maximum Section Tolerance: ±.006

Hole Diameter Tolerance: +.015/-.002

Lug Height Tolerance: ±.004

Minimum Section Tolerance: ±.006

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.

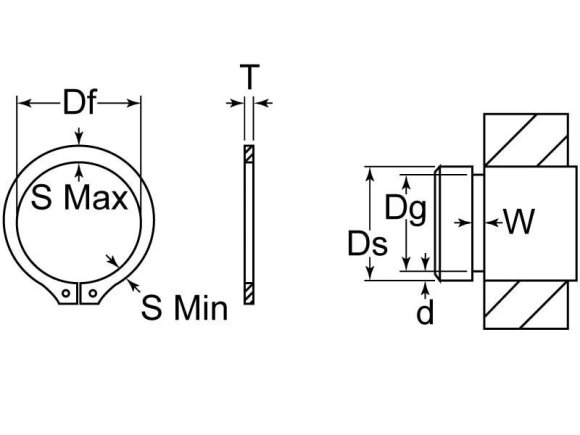

Technical Drawing
