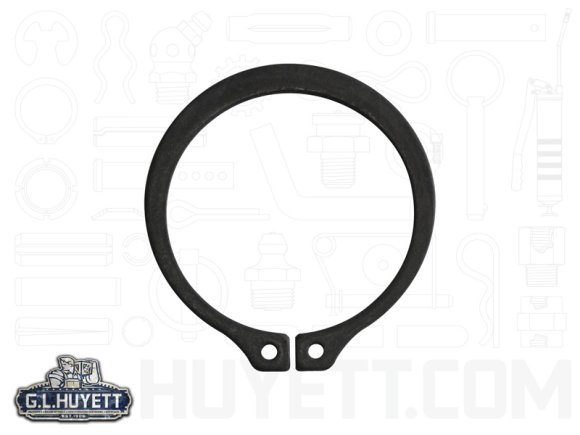

Snap Retaining Ring External 2-1/8 Spring Steel Phos

SH-212

Price:

each

Qty	Unit price
Each
2	$1.0148
100	$0.9641
500	$0.9133
1000	$0.8626
4000	$0.8118
10000	$0.7611

Request No Charge Material Cert

Description

Attributes

Weight (lbs.): 0.02516

Country of Origin: USA

RoHS Compliant: Yes

HTS Number: 7318240000

Brand Rotor Clip

Hole Diameter: .125 in

Inch or Metric: Inch

Groove Diameter: 2.000 in

Shaft Diameter: 2.125 in

Finish: Phosphate

Material: Carbon Spring Steel

Type: Snap Rings External

Thickness: .078 in

Style: Stamped

Groove Width: .090 in

Duty: Standard Duty

Allowable Corner Chamfers: .059 in

Allowable Corner Radii: .098 in

Clearance Diameter Expanded Over Shaft: 2.778 in

Clearance Diameter Released in Groove: 2.658 in

Edge Margin: .183 in

Free Diameter: 1.960 in

Gaging Diameter Maximum: 2.337 in

Groove Depth: .060 in

Groove Diameter to Shaft Concentricity: .006 in

Lug Height: .280 in

Maximum Section: .212 in

Minimum Section: .113 in

Maximum Thrust Load: 5000 Pound-Force

Manufacturer Part Number: SH-212ST PD

Hardness: HRC 47-52

Free Diameter Tolerance: +.015/-.025

Groove Diameter Tolerance: ±.006

Groove Width Tolerance: +.005/-.000

Shaft Diameter Fraction: 2-1/8 in

Thickness Tolerance: ±.003

Maximum Section Tolerance: ±.007

Hole Diameter Tolerance: +.015/-.002

Lug Height Tolerance: ±.005

Minimum Section Tolerance: ±.007

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.

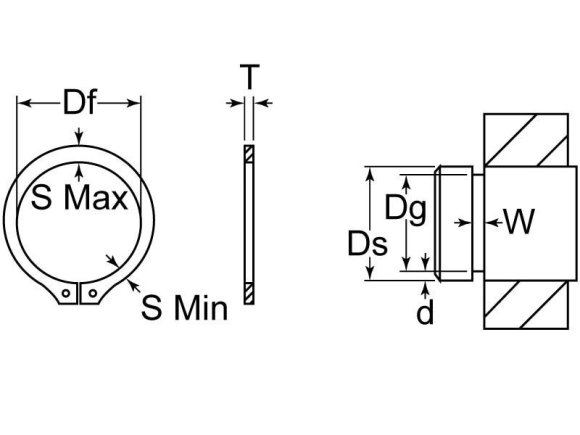

Technical Drawing
