Snap Retaining Ring Inverted External 13/16 Stainless Steel

SHI-081-SS

Price:

each

Qty	Unit price
Each
1	$3.8225
100	$3.6314
500	$3.4403
1000	$3.2491
4000	$3.0580
10000	$2.8669

No Material Cert Avail for In Stock Items

Description

Attributes

Weight (lbs.): 0.0033

Country of Origin: USA

RoHS Compliant: Yes

HTS Number: 7318240000

Brand Rotor Clip

Hole Diameter: .050 in

Inch or Metric: Inch

Material Grade: PH 15-7/17-7

Groove Diameter: .762 in

Shaft Diameter: .813 in

Finish: Plain

Material: Stainless Steel

Type: Snap Rings Inverted External

Thickness: .042 in

Style: Stamped

Allowable Corner Chamfers: .048 in

Allowable Corner Radii: .076 in

Clearance Diameter Expanded Over Shaft: 1.080 in

Clearance Diameter Released in Groove: 1.030 in

Edge Margin: .075 in

Free Diameter: .751 in

Gaging Diameter Maximum: 1.020 in

Groove Depth: .025 in

Groove Diameter to Shaft Concentricity: .004 in

Groove Width: .046 in

Maximum Section: .120 in

Minimum Section: .060 in

Duty: Standard Duty

Maximum Thrust Load: 1000 Pound-Force

Manufacturer Part Number: SHI-81SS

Hardness: HR30N 63-69.5

Free Diameter Tolerance: +.005/-.010

Groove Diameter Tolerance: ±.003

Groove Width Tolerance: +.003/-.000

Shaft Diameter Fraction: 13/16 in

Thickness Tolerance: ±.002

Maximum Section Tolerance: ±.005

Hole Diameter Tolerance: +.010/-.002

Minimum Section Tolerance: ±.005

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.

Technical Drawing

Questions & Reviews

Catalogs & Resources

Resources Catalog Page

Cart Total	$0.00
Items Total	0
Web Discount	$0.00

Snap Retaining Ring Inverted External 13/16 Stainless Steel

Description

Attributes

Technical Drawing

Questions & Reviews

Catalogs & Resources

Related Products

PRS-E047

PRS-E047-45

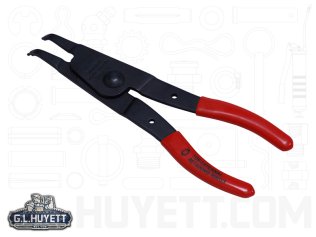

Pliers Ext XL Standard 90 Tip
