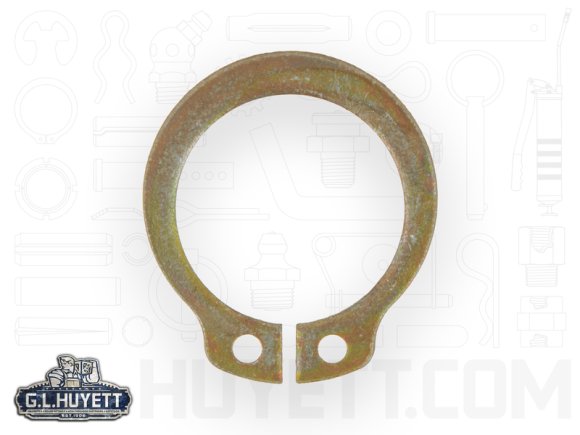

Snap Retaining Ring External Heavy Duty 63/64 Spring ZY

SHR-098-ZD

Price:

each

Qty	Unit price
Each
3	$0.6681
100	$0.6347
500	$0.6013
1000	$0.5679
4000	$0.5345
10000	$0.5011

Description

Attributes

Weight (lbs.): 0.0078

Country of Origin: USA

HTS Number: 7318240000

Brand Rotor Clip

Hole Diameter: .078 in

Inch or Metric: Inch

Groove Diameter: .925 in

Shaft Diameter: .984 in

Finish: Zinc Yellow

Material: Carbon Spring Steel

Type: Snap Rings External

Thickness: .078 in

Style: Stamped

Groove Width: .086 in

Duty: Heavy Duty

Allowable Corner Chamfers: .083 in

Allowable Corner Radii: .100 in

Clearance Diameter Expanded Over Shaft: 1.360 in

Clearance Diameter Released in Groove: 1.300 in

Edge Margin: .090 in

Free Diameter: .906 in

Gaging Diameter Maximum: 1.164 in

Groove Depth: .030 in

Groove Diameter to Shaft Concentricity: .002 in

Lug Height: .180 in

Maximum Section: .151 in

Minimum Section: .084 in

Maximum Thrust Load: 2500 Pound-Force

Manufacturer Part Number: SHR-98ST ZD

Hardness: HRC 47-56

Free Diameter Tolerance: +.005/-.010

Groove Diameter Tolerance: +.001/-.003

Groove Width Tolerance: +.005/-.000

RPM Limits: 30000 rpm

Shaft Diameter Fraction: 63/64 in

Thickness Tolerance: ±.003

Maximum Section Tolerance: ±.006

Hole Diameter Tolerance: +.015/-.002

Lug Height Tolerance: ±.005

Minimum Section Tolerance: ±.006

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.
