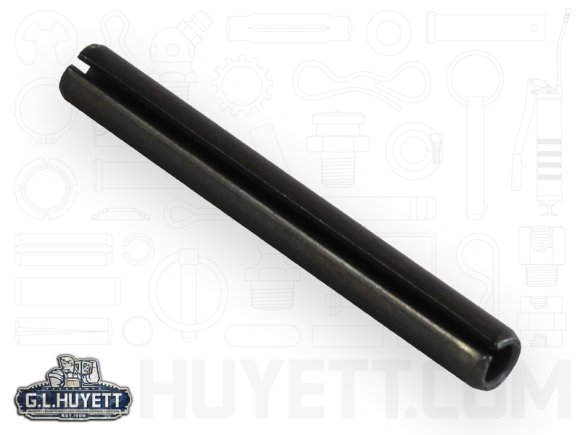

Slotted Spring Pin M6 x 50 Carbon Steel ASME B18.8.4M Type B

SPM-060-050-A

Price:

each

Qty	Unit price
Each
4	$0.5361
200	$0.5093
550	$0.4825
1350	$0.4557
3000	$0.4289
6000	$0.4021

Weight (lbs.): 0.015831

Country of Origin: USA

RoHS Compliant: Yes

HTS Number: 7318290000

Brand Spirol

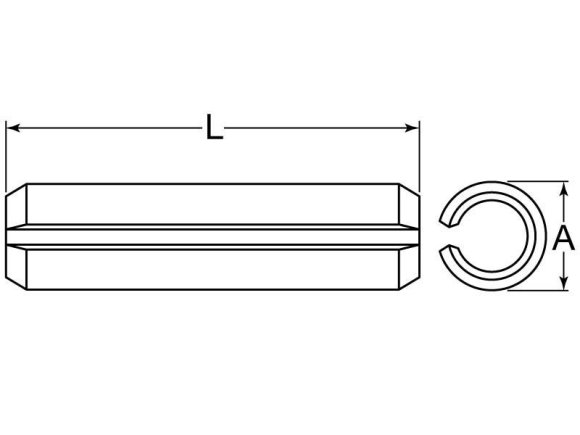

Overall Length: 50.00 mm

Outside Diameter: 6.00 mm

Inch or Metric: Metric

Material Grade: 1070-1080

Finish: Plain

Material: High Carbon Steel

Type: Slotted Spring Pin

Overall Length Maximum: 50.50 mm

Overall Length Minimum: 49.50 mm

Outside Diameter Maximum: 6.36 mm

Outside Diameter Minimum: 6.18 mm

Duty: Standard Duty

Wall Thickness: 1.20 mm

Double Shear Strength Minimum: 28.5 kN

Specification: ASME B18.8.4M Type B

Hardness: HV 458-560

Military Specification: No

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.
