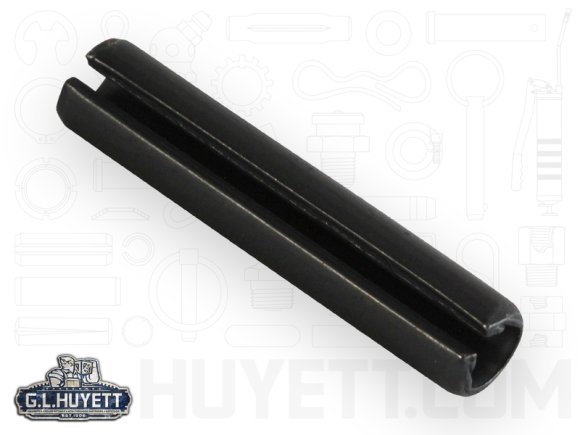

Slotted Spring Pin M8 x 40 Carbon Steel ASME B18.8.4M Type B

SPM-080-040-A

Price:

each

Weight (lbs.): 0.021755

Country of Origin: USA

RoHS Compliant: Yes

HTS Number: 7318290000

Brand Spirol

Overall Length: 40.00 mm

Outside Diameter: 8.00 mm

Inch or Metric: Metric

Material Grade: 1070-1080

Finish: Plain

Material: High Carbon Steel

Type: Slotted Spring Pin

Overall Length Maximum: 40.50 mm

Overall Length Minimum: 39.50 mm

Outside Diameter Maximum: 8.45 mm

Outside Diameter Minimum: 8.22 mm

Duty: Standard Duty

Wall Thickness: 1.50 mm

Double Shear Strength Minimum: 48.8 kN

Specification: ASME B18.8.4M Type B

Hardness: HV 458-560

Military Specification: No

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.
