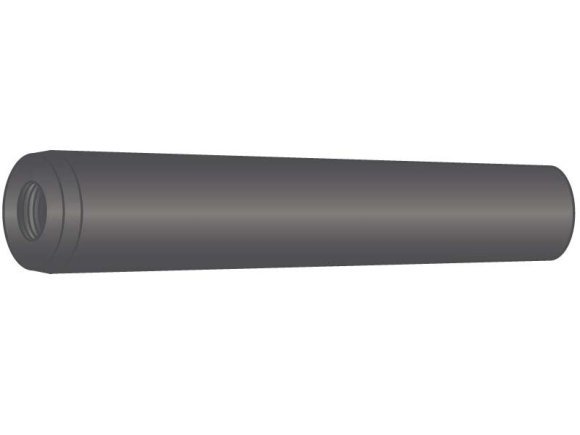

Taper Pin Internal Thread #10 x 6 12L14 Plain

TPTI-10-6000

Price:

each

Qty	Unit price
Each
13	$35.5254
50	$33.6557
150	$31.7859
350	$29.9162
550	$28.0464

Description

Attributes

Weight (lbs.): 0.56

RoHS Compliant: Yes

HTS Number: 7318240000

Effective Length: 6.000 in

Outside Diameter: .706 in

Inch or Metric: Inch

Material Grade: 12L14

Thread Pitch: 13 Threads per Inch

Finish: Plain

Material: Low Carbon Steel

Type: Taper Pin Internal Thread

Thread Size: 1/2-13

Thread Type: UNC

Thread Diameter Fraction: 1/2 in

Effective Length Maximum: 6.010 in

Effective Length Minimum: 5.990 in

Outside Diameter Maximum: .7073 in

Outside Diameter Minimum: .7053 in

Thread Depth: .750 in

Pin Number: #10

Head Length: .750 in

Effective Length Fraction: 6 in

All dimensions, specifications, tolerances, and country of origin are for reference only and are subject to change without notice.

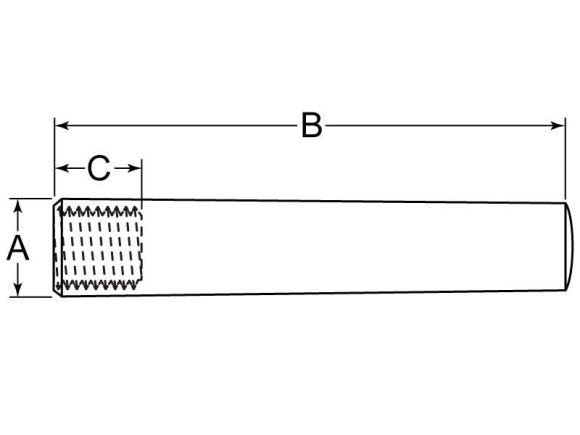

Technical Drawing
